  5. Essentra Components DLCBS3-3-01
DLCBS3-3-01

DLCBS3-3-01

Call for availability

Manufactured by:

ESSENTRA COMPONENTS

Mfr Part#:  DLCBS3-3-01

STANDARD PACKAGE:  1,000

Availability

  • Qty in Stock: Call for availability

  • Min. Order Qty: 1

SPECIFICATION

BETWEEN BOARD HEIGHT:  0.187" (4.75MM) 3/16"

CATEGORY:  HARDWARE, FASTENERS, ACCESSORIES

FAMILY:  BOARD SUPPORTS

FEATURES:  WINGED

HOLDING TYPE:  SNAP LOCK

LEAD FREE STATUS / ROHS STATUS:  LEAD FREE / ROHS COMPLIANT

LENGTH - OVERALL:  0.850" (21.60MM)

MANUFACTURER:  ESSENTRA COMPONENTS

MANUFACTURER PART NUMBER:  DLCBS3-3-01

MANUFACTURER STANDARD LEAD TIME:  2 WEEKS

MATERIAL:  NYLON

MOUNTING HOLE DIAMETER:  0.187" (4.75MM) 3/16"

MOUNTING PANEL THICKNESS:  0.031" ~ 0.078" (0.79MM ~ 1.98MM)

MOUNTING TYPE:  SNAP LOCK

SERIES:  DLCBS3

STANDARD PACKAGE:  1,000

SUPPORT HOLE DIAMETER:  0.156" (3.96MM) 5/32"

SUPPORT PANEL THICKNESS:  0.031" ~ 0.078" (0.79MM ~ 1.98MM)

Related Products

PST-5-01

PST-5-01

BOARD SUPPORT RESTING MOUNT / SNAP LOCK NYLON 0.313" (7.95MM) 5/16"

MFR. Name:  Essentra Components

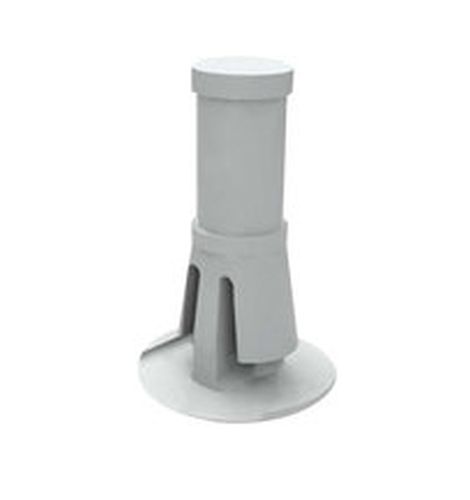

RLCBSRS-8-01

RLCBSRS-8-01

BOARD SUPPORT RESTING MOUNT / SNAP LOCK NYLON 0.500" (12.70MM) 1/2"

MFR. Name:  Essentra Components

RLCBSRE-4-01

RLCBSRE-4-01

BOARD SUPPORT SNAP LOCK / SNAP LOCK NYLON 0.250" (6.35MM) 1/4"

MFR. Name:  Essentra Components

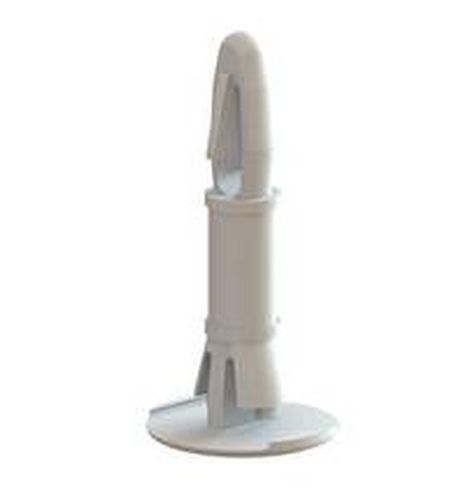

RLCBSR-10-01

RLCBSR-10-01

BOARD SUPPORT SNAP LOCK / SNAP LOCK NYLON 0.625" (15.88MM) 5/8"

MFR. Name:  Essentra Components

RLCBSR-4-01

RLCBSR-4-01

BOARD SUPPORT SNAP LOCK / SNAP LOCK NYLON 0.250" (6.35MM) 1/4"

MFR. Name:  Essentra Components

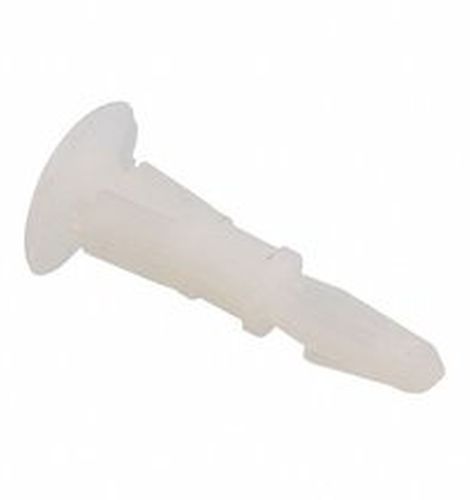

RLCBSR-6-01

RLCBSR-6-01

BOARD SUPPORT SNAP LOCK / SNAP LOCK NYLON 0.375" (9.53MM) 3/8"

MFR. Name:  Essentra Components

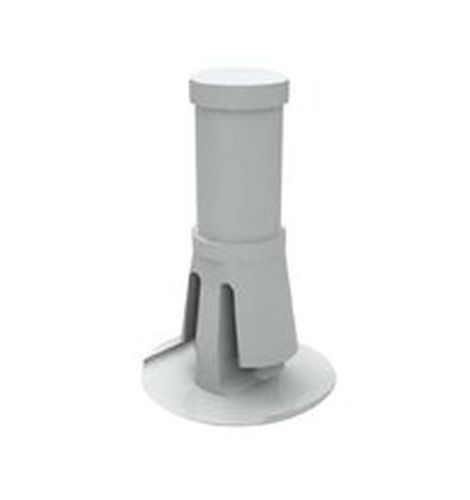

RLCBSRS-4-01

RLCBSRS-4-01

BOARD SUPPORT RESTING MOUNT / SNAP LOCK NYLON 0.250" (6.35MM) 1/4"

MFR. Name:  Essentra Components

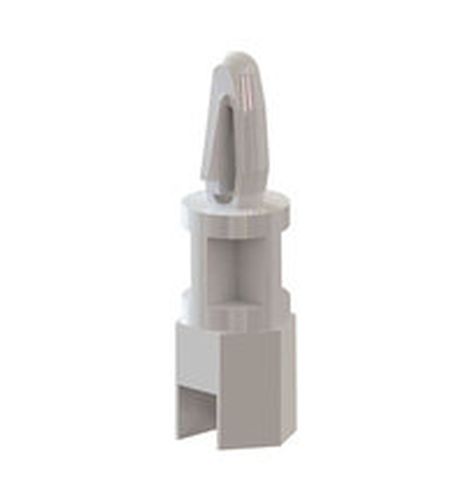

LCBS-TF-6-01
