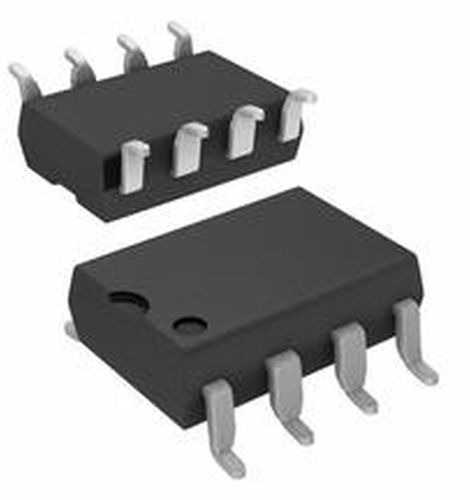

6N137-X007T
LOGIC OUTPUT OPTOISOLATOR 10MBD OPEN DRAIN 5300VRMS 1 CHANNEL 1KV/ΜS CMTI 8-SMDCall for availability
Manufactured by:
Mfr Part#: 6N137-X007T
PACKAGE / CASE: 8-SMD, GULL WING
PACKAGING: REEL
STANDARD PACKAGE: 1,000
SUPPLIER DEVICE PACKAGE: 8-SMD
Availability
Qty in Stock: Call for availability
Min. Order Qty: 1
CATEGORIES: ISOLATORS
COMMON MODE TRANSIENT IMMUNITY (MIN): 1KV/ΜS
CURRENT - DC FORWARD (IF) (MAX): 20MA
CURRENT - OUTPUT / CHANNEL: 50MA
DATA RATE: 10MBD
DETAILED DESCRIPTION: LOGIC OUTPUT OPTOISOLATOR 10MBD OPEN DRAIN 5300VRMS 1 CHANNEL 1KV/ΜS CMTI 8-SMD
INPUT TYPE: DC
INPUTS - SIDE 1/SIDE 2: 1/0
LEAD FREE STATUS / ROHS STATUS: LEAD FREE / ROHS COMPLIANT
MANUFACTURER: VISHAY SEMICONDUCTOR OPTO DIVISION
MANUFACTURER PART NUMBER: 6N137-X007T
MANUFACTURER STANDARD LEAD TIME: 28 WEEKS
MOISTURE SENSITIVITY LEVEL (MSL): 1 (UNLIMITED)
MOUNTING TYPE: SURFACE MOUNT
NUMBER OF CHANNELS: 1
OPERATING TEMPERATURE: -40°C ~ 100°C
OUTPUT TYPE: OPEN DRAIN
PACKAGE / CASE: 8-SMD, GULL WING
PACKAGING: REEL
PROPAGATION DELAY TPLH / TPHL (MAX): 75NS, 75NS
RISE / FALL TIME (TYP): 23NS, 7NS
STANDARD PACKAGE: 1,000
SUPPLIER DEVICE PACKAGE: 8-SMD
VOLTAGE - FORWARD (VF) (TYP): 1.4V
VOLTAGE - ISOLATION: 5300VRMS
VOLTAGE - SUPPLY: 4.5 V ~ 5.5 V
