SCHAFFNER

Passives

Filters

EH35-1.0-02-90M

EH35-1.0-02-90M

90MH @ 400HZ 2 LINE COMMON MODE CHOKE THROUGH HOLE 1A DCR 628 MOHM (TYP)

MFR. Name:  Schaffner

EH35-5.0-02-3M6

EH35-5.0-02-3M6

3.6MH @ 400HZ 2 LINE COMMON MODE CHOKE THROUGH HOLE 5A DCR 33 MOHM (TYP)

MFR. Name:  Schaffner

RB6132-25-0M5

RB6132-25-0M5

470ΜH @ 400HZ 3 LINE COMMON MODE CHOKE THROUGH HOLE 25A DCR 2.4 MOHM (TYP)

MFR. Name:  Schaffner

RB6132-36-0M4

RB6132-36-0M4

420ΜH @ 400HZ 3 LINE COMMON MODE CHOKE THROUGH HOLE 36A DCR 1.4 MOHM (TYP)

MFR. Name:  Schaffner

RB6522-36-0M5

RB6522-36-0M5

450ΜH @ 400HZ 2 LINE COMMON MODE CHOKE THROUGH HOLE 36A DCR 1.5 MOHM (TYP)

MFR. Name:  Schaffner

RB6532-25-0M5

RB6532-25-0M5

470ΜH @ 400HZ 3 LINE COMMON MODE CHOKE THROUGH HOLE 25A DCR 2.4 MOHM (TYP)

MFR. Name:  Schaffner

MFR. Name:  Schaffner

RN102-1-02

RN102-1-02

3MH @ 1KHZ 2 LINE COMMON MODE CHOKE THROUGH HOLE 1A (TYP) DCR 205 MOHM (TYP)

MFR. Name:  Schaffner

RN102-2-02

RN102-2-02

1.1MH @ 10KHZ 2 LINE COMMON MODE CHOKE THROUGH HOLE 2A (TYP) DCR 70 MOHM (TYP)

MFR. Name:  Schaffner

RN112-0.4-02

RN112-0.4-02

39MH @ 1KHZ 2 LINE COMMON MODE CHOKE THROUGH HOLE 400MA (TYP) DCR 1.67 OHM (TYP)

MFR. Name:  Schaffner

RN112-0.8-02

RN112-0.8-02

10MH @ 10KHZ 2 LINE COMMON MODE CHOKE THROUGH HOLE 800MA (TYP) DCR 370 MOHM (TYP)

MFR. Name:  Schaffner

MFR. Name:  Schaffner

RN112-4-02

RN112-4-02

700ΜH @ 1KHZ 2 LINE COMMON MODE CHOKE THROUGH HOLE 4A (TYP) DCR 27 MOHM (TYP)

MFR. Name:  Schaffner

RN114-0.8-02

RN114-0.8-02

27MH @ 10KHZ 2 LINE COMMON MODE CHOKE THROUGH HOLE 800MA (TYP) DCR 500 MOHM (TYP)

MFR. Name:  Schaffner

RN114-2.5-02

RN114-2.5-02

3.3MH @ 10KHZ 2 LINE COMMON MODE CHOKE THROUGH HOLE 2.5A (TYP) DCR 72 MOHM (TYP)

MFR. Name:  Schaffner

RN114-3-02

RN114-3-02

2MH @ 10KHZ 2 LINE COMMON MODE CHOKE THROUGH HOLE 3A (TYP) DCR 55 MOHM (TYP)

MFR. Name:  Schaffner

RN114-4-02

RN114-4-02

1.5MH @ 1KHZ 2 LINE COMMON MODE CHOKE THROUGH HOLE 4A (TYP) DCR 35 MOHM (TYP)

MFR. Name:  Schaffner

RN122-0.8-02

RN122-0.8-02

39MH @ 1KHZ 2 LINE COMMON MODE CHOKE THROUGH HOLE 800MA (TYP) DCR 1 OHM (TYP)

MFR. Name:  Schaffner

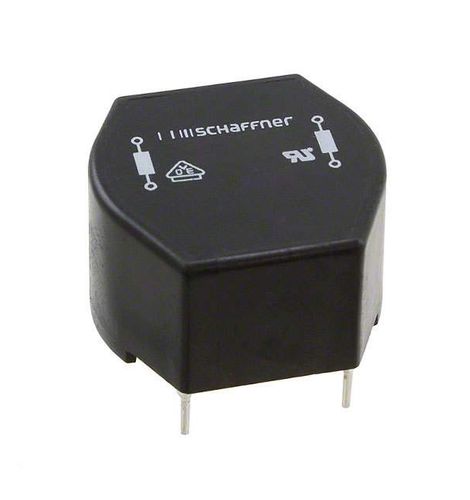

RN122-2-02

RN122-2-02

6.8MH @ 10KHZ 2 LINE COMMON MODE CHOKE THROUGH HOLE 2A (TYP) DCR 160 MOHM (TYP)

MFR. Name:  Schaffner

MFR. Name:  Schaffner
